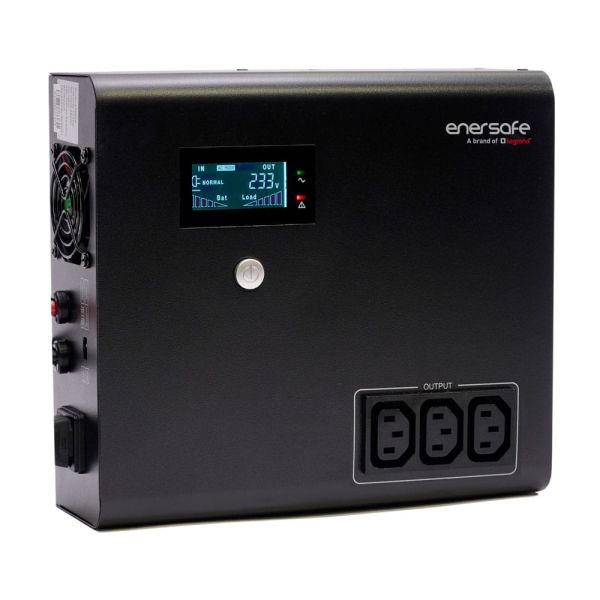

Enersafe Inversor Cargador 2400VA 1440W 24VDC by Legrand
$169,646 El precio original era: $169,646.$157,080El precio actual es: $157,080. - C/IVA
- Transferencia automática de línea a batería
- Diseño de rack/torre, versatilidad de instalación
- Rango de voltaje de entrada más amplio ajustable y corriente de carga
- Control de carga inteligente, carga eficiente
- Reinicio automático cuando se restablece la alimentación principal
- Protección superior: batería baja, sobrecarga, sobrecarga, sobretemperatura y cortocircuito
- Alta capacidad de carga, soportando diversas cargas domésticas y equipos de TI (< 50% de media onda carga, < 30% carga inductiva)
Sin existencias
Descripción
Enersafe Inversor Cargador 2400VA 1440W 24VDC by Legrand
| Topología |
|
| Potencia VA/Watts |
2400VA/1440W |
| Factor Potencia Salida |
0,6 |
| Formato |
Torre |
| Panel |
LCD + LED |
ENTRADA
| Voltaje nominal |
220 / 230 / 240 Vac (selectable) |
| Rango Voltaje |
220 / 230 / 240 Vac, -22% / -59% ~ +26%,
± 5 Vac (selectable) |
| Frecuencia |
50 / 60 Hz (auto-sensing) |
| Rango Frecuencia |
± 10% (default), ± 5% ~ 15% (selectable) |
SALIDA
| Factor de Potencia |
0.6 |
| Voltage Salida |
Battery mode: 220 / 230 / 240 Vac±10% (selectable)
Mains mode: synchronized with utility power |
| Frecuencia Salida |
Battery mode: 50 / 60 Hz±1% (selectable);
Mains mode: synchronized with utility power |
| Forma de onda |
Battery mode: square wave; Mains mode: synchronized with utility power |
| Eficiencia inversor |
≥ 85% (max.) |
| IT equipment |
Yes |
| Half-wave load |
≤ 50% (rated load) |
| Inductive load |
≤ 30% (rated load) |
BATERIA
| Rated voltage |
24 VDC |
| Corriente de carga Max |
15 / 10 A ± 3 A (selectable) |
| Voltage carga equalizacion |
Single battery 14.2 ± 0.3 Vdc (default), 13.6 ~ 15.0 Vdc (selectable) |
| Voltage Flotacion |
Single battery 13.6 ± 0.3 Vdc |
| Low voltage alarm |
Single battery 10.8 ± 0.3 Vdc (default), 9.6 ~ 13.0 Vdc (selectable) |
| Low voltage shutdown |
Single battery 10.2 ± 0.3 Vdc (default), 9.6 ~ 12.0 Vdc (selectable) |
| Proteccion sobrevoltage |
Single battery 15.0 ± 0.3 Vdc |
| Overvoltage recovery |
Single battery 13.6 ± 0.3 Vdc |
SISTEMA
| Tiempo de Transferencia |
≤ 8 ms (typical) , ≤ 15 ms (max.)12 VDC |
| Proteccion |
Overload, short circuit, over-temperature, output over/under-voltage, excessive low battery |
| Overload times (Mains mode) |
≥ 110% for 120 s, ≥ 125% for 60 s, ≥ 150% for 10 s, ≥ 200% for 1 s |
| Overload times (Battery mode) |
≥ 110% for 60 s, ≥ 125% for 5 s, ≥ 150% for 1 s |
| interfaz de comunicacion |
No |
| Low voltage shutdown |
Single battery 10.2 ± 0.3 Vdc (default), 9.6 ~ 12.0 Vdc (selectable) |
| Proteccion sobrevoltage |
Single battery 15.0 ± 0.3 Vdc |
| Overvoltage recovery |
Single battery 13.6 ± 0.3 Vdc |
OTROS
| Temperatura Operacion |
0 ~ 45℃ |
| Operacion Humedad |
0 ~ 95% (no-condensing) |
| Altitude |
≤ 1000 m (Above 1000 m, derating 1% for each additional 100 m) |
| IP Proteccion |
IP 20 |
| Cooling |
Forced-air cooling |
| Ruido |
< 45 dB |
| Dimensiones (W x D x H) (mm) |
245 x 220 x 80 |
| Dimnension Empaque (W x D x H) (mm) |
315 x 290 x 156 |
Ficha Técnica
